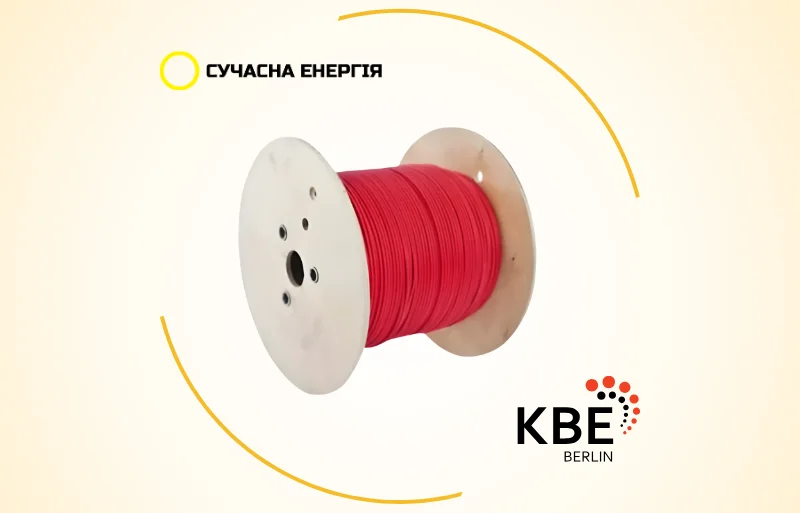

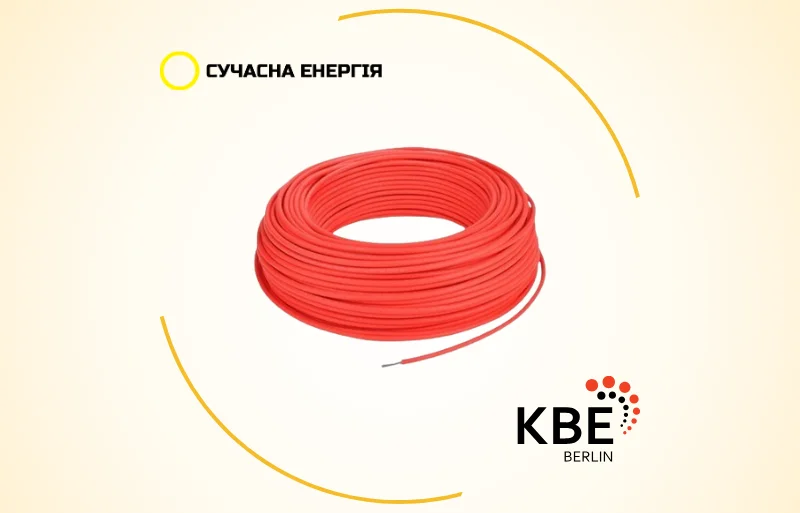

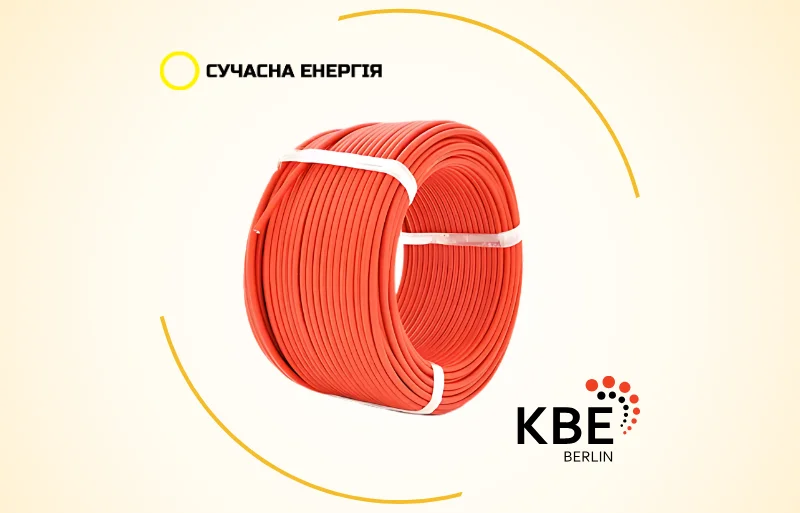

Solar cable KBE 6mm red

Reliable and resistant to external influences cable for connecting solar panels and solar energy systems.
Important! Sale is carried out in multiples of 500m.

Solar cable

Solar cable KBE 6mm red

Reliable and resistant to external influences cable for connecting solar panels and solar energy systems.
Important! Sale is carried out in multiples of 500m.

Brand

KBE Berlin

Model

Solar DB+

Country

Germany

Cross-section, mm²

6

Characteristics

Description of the product

Solar cable KBE – reliability for your solar power plant

Are you planning to connect solar panels or upgrade your solar power plant? The KBE Solar DB+ 6 mm² solar cable ensures stable and safe electricity transmission even under high loads.

Main characteristics:

Type

single-core, insulated cable in double sheath

Nominal voltage

up to 1000 V AC and 1500 V DC

Temp. range

from -40°C to +90°C (maximum heating temperature up to +120°C)

Material

alkaline copper, conforming to IEC 60228 class 5 standards

Isolation

cross-linked polyolefin, UV and moisture resistant

Application:

This cable is designed for use in extreme conditions. It is resistant to ultraviolet light, temperature extremes, moisture and mechanical damage. This reliability makes it the optimal solution for laying outdoors, in the ground or in difficult installation areas. Thanks to its flexibility and well-thought-out design, the cable can be easily integrated into any solar panel system, regardless of the scale of the project.



The KBE Solar DB+ 6 mm² solar cable is suitable for connecting panels to inverters, battery systems and other components of photovoltaic stations. It ensures stable current transmission, minimizes energy losses and reduces the risk of overheating or short circuits. The cable has a service life of more than 25 years, which makes it a profitable investment in the long-term efficiency of your solar power plant.



The cable complies with modern standards EN 50618 and IEC 62930, which guarantees safe and reliable operation. Voltage up to 1500 V DC, temperature range from -40°C to +120°C and cross-section of 6 mm² make it a universal solution for private and industrial solar power plants.



By choosing KBE Solar DB+ 6 mm², you get a cable that combines high efficiency, durability and safety, ensuring stable operation of your solar system for many years.
